PPI Herring Wing Pulley

PPI’s Herringbone Wing has been designed with angled wings to provide constant belt contact and to effectively eject material that is dislodged from the belt. Depending on pulley size wing angles may be up to 45 degrees to effectively carry material to the outside edge of the pulley and they give the Herringbone Wing exceptional strength. With less belt vibration, quieter operation and durability, the Herringbone Wing provides benefits a standard wing can’t match.

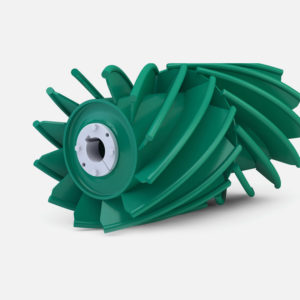

Image of herringbone wing pulley.

Features and Benefits:

  • Wing angles of up to 45°
  • Provide unmatched expulsion of material and wing folding resistance
  • Allow multiple points of contact with wider gaps to further reduce the chance of material entrapment
  • Radius crown design applies less stress on the belt for increased belt life, while still providing belt tracking capabilities
  • A center reinforcement ring adds even more wing strength
  • Available in two classes to better match application requirements

Specs:

Available in diameters of 12″ to 72″ and face widths of 12″ to 78″

Herringbone Wing (HBW):

  • 1″ cold drawn round contact bar on 12″ to 20″ diameter wings
  • 1-1/4″ cold drawn round contact bar on 24″ to 72″ diameter wings
  • 3/8″ wings

CEMA Herringbone Wing:

  • 3/4″ cold drawn round contact bar
  • 1/4″ wings
